Applications

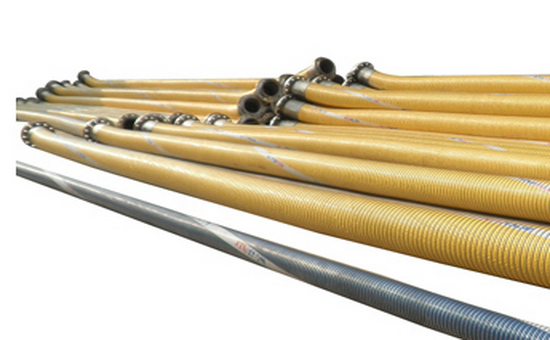

This range of highquality composite hoses is manufactured from multiple layers of polypropylenefabrics and films. The inner wire helix can be polypropylene coated carbonsteel or stainless steel 316. The outer wire helix can be galvanized steel orstainless steel 316.

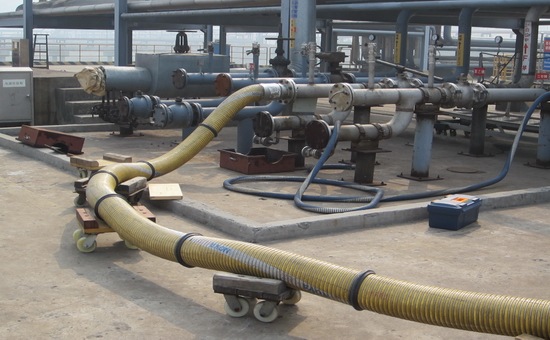

Sondaflex THSG, THSShoses make use of the wide chemical resistance range of polypropylene toproduce a hose suitable for the majority of chemical and oil products at aneconomical price. Some typical applications are in plant transfer of liquidchemicals, vegetable and mineral oils and loading and unloading of theseproducts to and from, road tankers, rail tankers and marine tanker ships. Forthose products which are chemically incompatible with polypropylene or outsideof the temperature range indicated Sondaflex have several alternativesavailable.
SONDAFLEX THSG, THSS
Construction
inner Wire spiral: stainless steel 304/stainless steel 316
outer Wire spiral: galvanized steel /stainless steel304/stainless steel 316
inner lining: polypropylene (e)
cover: PVC (pp onrequest)
Bore Diameter | Max Working Pressure | Bend Radius | Weight | Max Length | ||
INS | MM | BARS | PSI | MM | KGS/M | MT |
1 | 25 | 14bar | 200PSI | 200 | 1.35 | 30 |
1.5 | 40 | 14bar | 200PSI | 200 | 1.80 | 25 |
2 | 50 | 14bar | 200PSI | 225 | 2.45 | 30 |
2.5 | 65 | 14bar | 200PSI | 225 | 3.20 | 25 |
3 | 80 | 14bar | 200PSI | 350 | 4.20 | 30 |
4 | 100 | 14bar | 200PSI | 400 | 4.90 | 25 |
6 | 150 | 14bar | 200PSI | 575 | 12.90 | 28 |
8 | 200 | 14bar | 200PSI | 800 | 20.10 | 28 |
10 | 250 | 14bar | 200PSI | 1000 | 26.50 | 16 |
12 | 300 | 14bar | 200PSI | 1200 | 31.80 | 16 |
